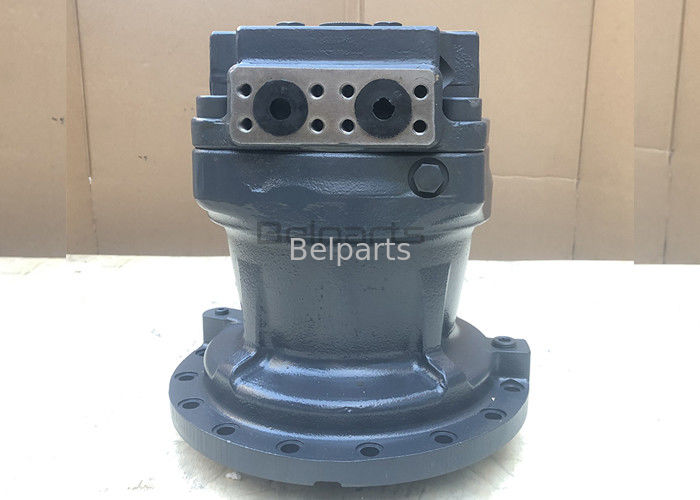

Excavator hydraulic rotary motor DX225 DX260 170303-00052A K1000697A swing motor
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xHerkunftsort | Guangdong, China | Markenname | Belparts |
---|---|---|---|
Preis | Negotiable Price | Lieferzeit | 1-7 Tage |
Versorgungsmaterial-Fähigkeit | 1000PCS | Vorbildliches Name | DX225 DX260 |
Teilnummer | 170303-00052A | Bedingung | Neu |
Excavator hydraulic rotary motor DX225 DX260 170303-00052A swing motor
Appliion |
Excavator |
Part name |
Belparts swing motor |
Material |
Steel |
Model |
DX225 |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
List of spare part
# | Part No | Part Name | Comment | Qty. | Price request |
---|---|---|---|---|---|
- | K1000697A | MOTOR, SWING | 64 kg | 1 | |
101 | *NA00351 | CASING, VALVE | 1 | ||
102 | 2.121-00009 | PLUG | 2 | ||
103 | K9001840 | SPRING | 2 | ||
104 | K9001841 | PLUNGER | 2 | ||
105 | 1.420-00016 | VALVE, SWING REACTIONLESS | 1 kg | 1 | |
106 | S8000341 | O-RING | E6300761 | 2 | |
107 | 1.420-00111 | VALVE, RELIEF | 1 kg | 2 | |
108 | S6005050 | BEARING, BALL | 1 | ||
109 | S2227561 | BOLT, HEX SOCKET HEAD | 4 | ||
110 | 2181-1950D1 | PLUG, RECHECK | 2 | ||
111 | S8000111 | O-RING | 1BP11 | 2 | |
112 | K9001842 | O-RING | 1 | ||
113 | S5741162 | PIN, SPRING | D8X16L | 2 | |
201 | K9001843 | SHAFT, DRIVE | 3 kg | 1 | |
202 | K9001844 | PLATE, SWASH | 3 kg | 1 | |
203 | K9001845 | PISTON & SHOE ASS`Y | 1 SET | ||
205 | K9001846 | BLOCK, CYLINDER | 5 kg | 1 | |
206 | 1.148-00015 | BALL, THRUST | 1 | ||
207 | 1.412-00092 | PLATE, RETAINER | 1 | ||
208 | 1.114-00009 | COLLAR, WASHER | 1 | ||
209 | 1.109-00134 | BEARING, ROLLER | 5 | ||
210 | 1.114-00286 | WASHER | 2 | ||
211 | 1.131-00048 | SPRING | 1 | ||
212 | S6510620 | RING, RETAINING | 1 | ||
213 | K9001847 | PLATE, TIMING | 1 kg | 1 | |
301 | K9001848 | CASING | 22 kg | 1 | |
302 | 180-00219 | SEAL, OIL | 1 | ||
303 | S6005090 | BEARING, BALL | 1 kg | 1 | |
304 | 1.123-00053 | PIN, PARALLEL | 1 | ||
305 | 352-00014 | SEPARATOR PLATE(S/M) | 3 | ||
306 | 412-00013 | PLATE, FRICTION | 2 | ||
307 | 180-00220 | O-RING | 1 | ||
308 | 180-00221 | O-RING | 1 | ||
309 | 452-00020 | PISTON, BRAKE | 3 kg | 1 | |
310 | 129-00062 | SPRING, BRAKE | 18 | ||
311 | 181-00346 | PLUG, PT | 1 | ||
312 | 2181-1116D2 | PLUG, RECHECK | 1 | ||
313 | 2181-1950D1 | PLUG, RECHECK | 1 | ||
314 | S8000111 | O-RING | 1BP11 | 1 | |
400 | 420-00110 | VALVE, BRAKE | 1 kg | 1 | |
* | K9001903 | SEAL KIT, SWING MOTOR | 1 |
